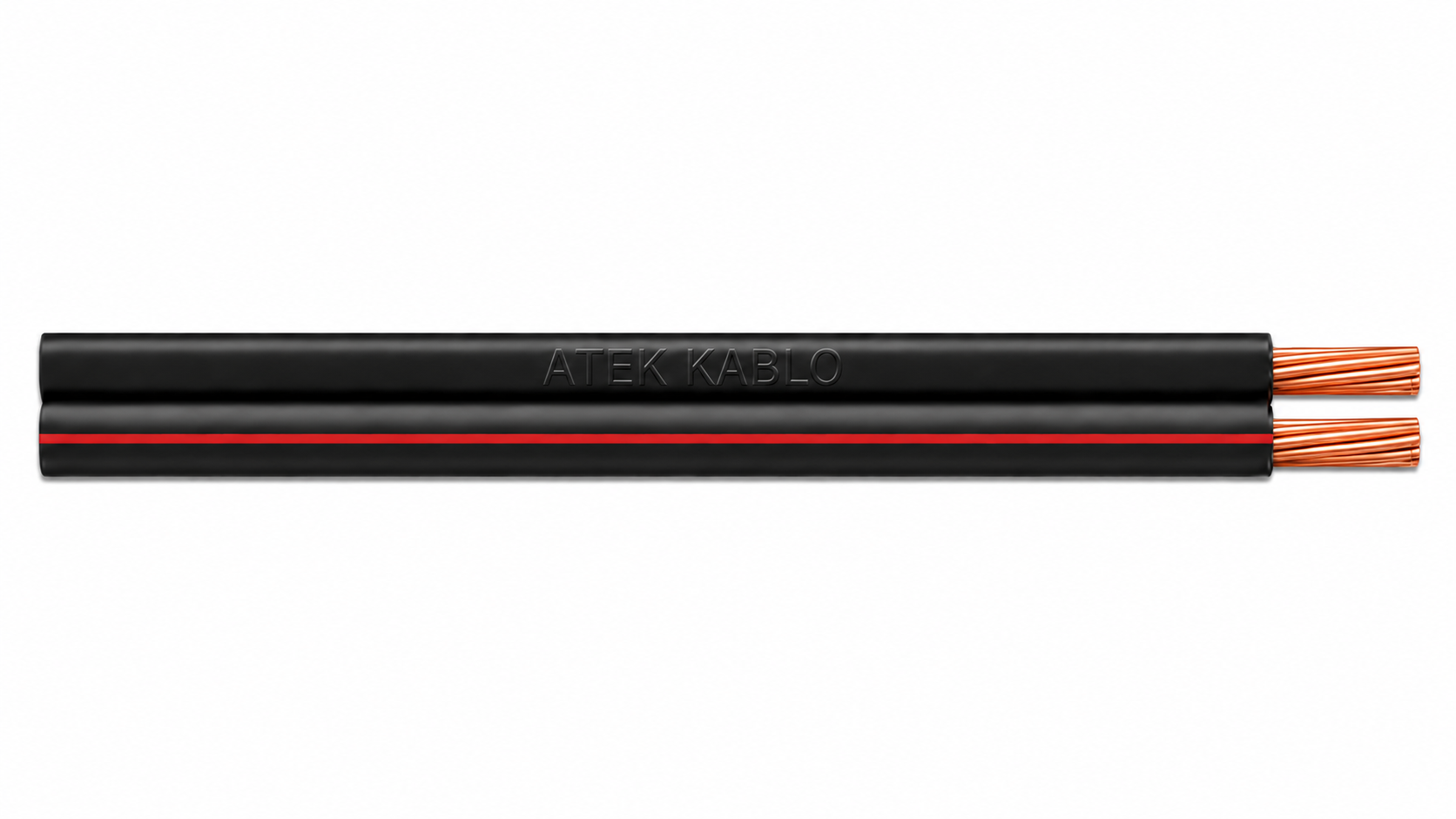

A03VH-H / A05VH-H
Flat Flexible PVC Twin Cord
PVC-Insulated Flat Twin Cable
APPLICATION
- Portable electrical appliances used in dry indoor areas
- Mobile devices subjected to low mechanical stress
- Light-duty power and connection leads
- Applications requiring a flat, flexible twin-core construction
CONSTRUCTION
| No | Component | Material / Description |
|---|---|---|
| 1 | Conductor | Class 5 fine-stranded copper |
| 2 | Insulation | Polyvinyl chloride (PVC) |
| 3 | Core Arrangement | Two parallel insulated conductors in a flat twin construction |
| 4 | Core Identification | One core identified by a continuous red longitudinal stripe |
| 5 | Cable Form | Flat, flexible, twin-core cord |
| 6 | Type / Rated Voltage | A03VH-H: 300/300 V; A05VH-H: 300/500 V |
TECHNICAL CHARACTERISTICS
| Parameter | Value | Unit |
|---|---|---|
| Maximum Operating Temperature | 70 | °C |
| Maximum Short-Circuit Temperature | 160 | °C |
| Rated Voltage | A03VH-H: 300/300 ; A05VH-H: 300/500 | V |
| AC Test Voltage | 2 | kV |
| Minimum Bending Radius | D ≤ 8 mm: 4D; 8 < D ≤ 12 mm: 5D; D > 12 mm: 6D | - |
| Vertical Flame Propagation Test | EN 60332-1-2 | - |
| Material Compliance | RoHS & REACH compliant; lead-free | - |
| Application Conditions | Dry areas; low mechanical stress | - |
TECHNICAL DATA
| Type | Nominal Cross-section mm² | Approx. Overall Dimensions mm | Approx. Net Weight kg/km | Max. Conductor Resistance at 20 °C Ω/km | Current Carrying Capacity in Air A |
|---|---|---|---|---|---|
| A03VH-H | 2 x 0.50 | 2.5 x 5.0 | 22 | 39.0 | 3 |
| A03VH-H | 2 x 0.75 | 2.7 x 5.5 | 29 | 26.0 | 6 |
| A05VH-H | 2 x 1.0 | 3.1 x 6.4 | 36 | 19.5 | 10 |
| A05VH-H | 2 x 1.5 | 3.4 x 7.0 | 46 | 13.3 | 16 |
| A05VH-H | 2 x 2.5 | 3.8 x 7.8 | 65 | 7.98 | 25 |
| A05VH-H | 2 x 4 | 4.5 x 9.2 | 99 | 4.95 | 32 |
| A05VH-H | 2 x 6 | 5.3 x 10.8 | 142 | 3.30 | 40 |
STANDARDS
- Class 5 fine-stranded copper conductor
- Polyvinyl chloride (PVC) insulation
- EN 60332-1-2 flame propagation test
- Lead-free construction
- A03VH-H rated 300/300 V
- A05VH-H rated 300/500 V
- RoHS & REACH compliant
- Dry areas and low mechanical stress
ORDERING INFORMATION
| Product Code | Description | Packaging |
|---|---|---|
| A03VH-H | Flat Flexible PVC Twin Cord, 300/300 V | On request |
| A05VH-H | Flat Flexible PVC Twin Cord, 300/500 V | On request |
MARKING
ATEK KABLO - [A03VH-H / A05VH-H] - [2 x Cross-section] - [Rated Voltage] - EN 60332-1-2 - [Batch No] - [Meter Mark]
NOTES
- Flat twin construction is intended for portable or mobile electrical appliances in dry areas.
- Use is limited to applications with low mechanical stress.
- One core is identified by a continuous red longitudinal stripe.
- Overall dimensions and net weights are approximate values.
