Category 6 F/UTP Pvc Cable
High Performance Data Cable
Application
- Designed for high-speed data transmission in structured cabling systems.
- Supports Gigabit Ethernet applications up to 250 MHz.
- Suitable for horizontal cabling in office networks and data centers.

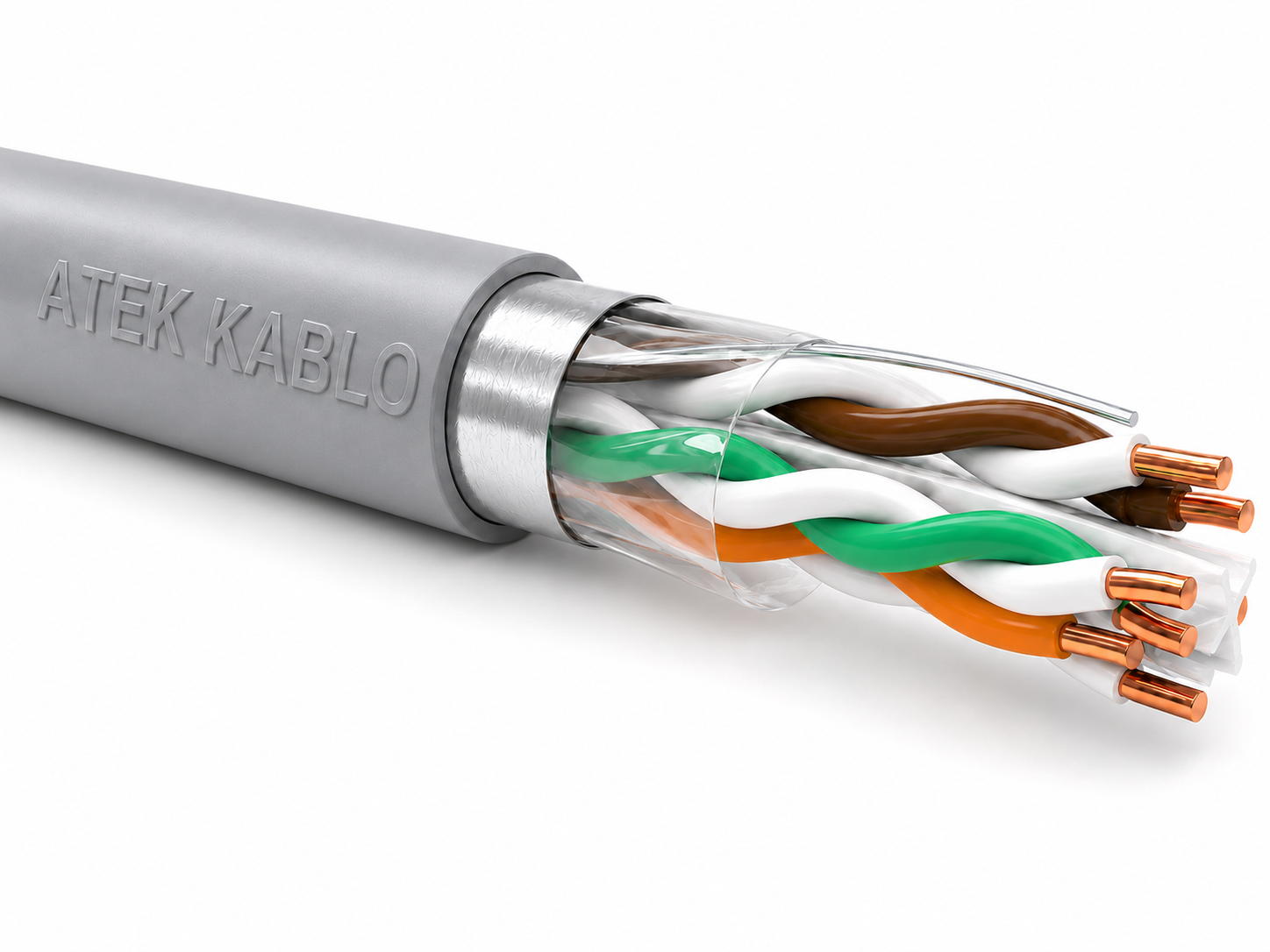

Construction
| No | Component | Material / Description |
|---|---|---|
| 1 | Conductor | Solid Bare Copper (23 AWG) |
| 2 | Insulation | HDPE |
| 3 | Colour Code |
White-Blue / Blue White-Orange / Orange White-Green / Green White-Brown / Brown |
| 4 | Shielding | Aluminium/Polyester Tape (Overall) |
| 5 | Drain Wire | Tinned Copper |
| 6 | Cable Core | 4 pairs twisted together |
| 7 | Outer Sheath | PVC (RAL 7035 Grey) |
Mechanical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Conductor | Solid Bare Copper (23 AWG) | - |
| Insulation | HDPE | - |
| Shielding | Aluminium/Polyester Tape | - |
| Drain Wire | Tinned Copper | - |
| Outer Sheath | PVC (RAL 7035 Grey) | - |
| Outer Diameter (Nom.) | 6.8 ± 0.3 | mm |
| Bending Radius (Min.) | 8 x OD | - |
| Operating Temperature | -20°C to +60°C | °C |
| Installation Temperature | 0°C to +50°C | °C |
Electrical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| Characteristic Impedance (1-250 MHz) | 100 ± 15 | Ω |
| Frequency | 1 - 250 | MHz |
| DC Loop Resistance (Max.) | ≤ 190 | Ω/100m |
| Insulation Resistance (Min.) | 5000 | MΩ.km |
| Mutual Capacitance (Max.) | 5.6 | nF/100m |
| Capacitance Unbalance (Pair to Ground, Max.) | 330 | pF/100m |
| Propagation Delay Skew (Max.) | 45 | ns/100m |
| Nominal Velocity of Propagation (NVP) | 69 | % |
Standards
- ISO/IEC 11801
- EN 50173-1
- TIA/EIA-586-D.2
- IEC 61156-5
- IEC 60332-1-2
- RoHS Compliant
Ordering Information
| Product Code | Description | Packaging |
|---|---|---|
| ATK6FUTP-GY | Cat6 F/UTP Cable, PVC, RAL 7035 Grey | 305 m / Box |
Marking
ATEK KABLO - CATEGORY 6 F/UTP - 4P - 23AWG - PVC - 250MHz - IEC 61156-5 - ISO/IEC 11801 - EN 50173 - RoHS - [Batch Number] - [Meter Mark]
Notes
- Suitable for high-speed data transmission up to 250 MHz.
- PVC outer sheath in RAL 7035 grey colour.
- Intended for indoor horizontal cabling in structured cabling installations.
