Category 6A U/UTP Cable
High Performance Data Cable
APPLICATION
- Suitable for IEEE 802.3 Ethernet applications including 10BASE-T, 100BASE-T and 1000BASE-T.
- Supports IEEE 802.5 16 Mb, ISDN, TPDDI, ATM, Power over Ethernet (PoE) and PoE+ applications.
- Designed for information communication systems with bandwidth up to 500 MHz.

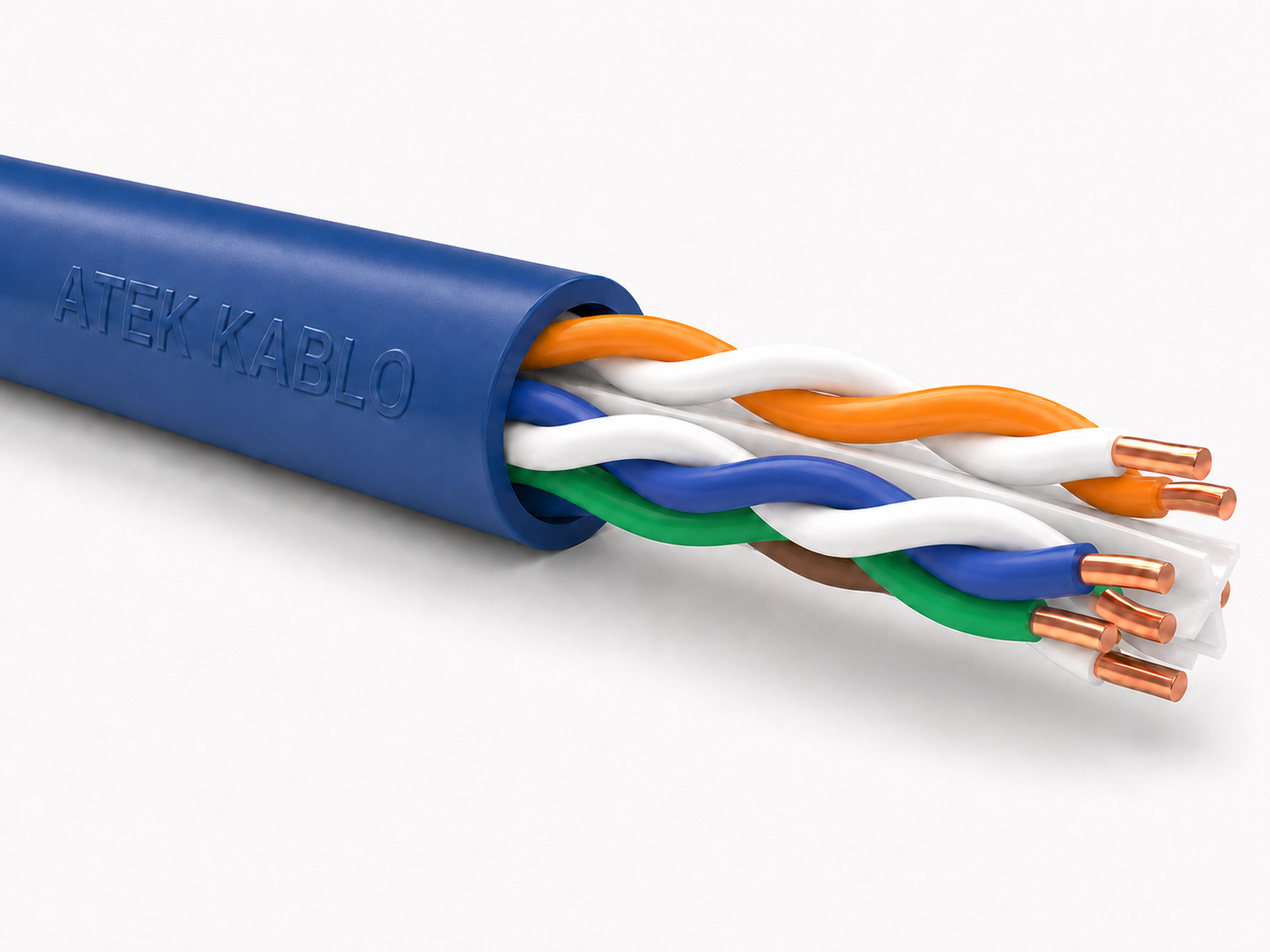

CONSTRUCTION
| No | Component | Material / Description |
|---|---|---|
| 1 | Conductor | Annealed Solid Copper (23 AWG) |
| 2 | Insulation | PE |
| 3 | Cross Separator | PE |
| 4 | Outer Sheath | Ø 6.20 ± 0.20 mm; PVC, HFFR or PE |
MECHANICAL CHARACTERISTICS
| Parameter | Value | Unit |
|---|---|---|
| Copper Weight | 19.1 | kg/km |
| Bending Radius (Min.) - Flexible | 50 | mm |
| Bending Radius (Min.) - Fixed | 25 | mm |
| Tensile Force (Max.) | 90 | N |
| Crush Resistance (Min.) | 1000 | N/10 cm |
| Impact Resistance (Min.) | 10 | Impacts |
| Temperature Range - Flexible | 0 to +50 | °C |
| Temperature Range - Fixed | -20 to +70 | °C |
| Packaging | 305 / 500 | m |
ELECTRICAL CHARACTERISTICS (at 20°C)
| Parameter | Value | Unit |
|---|---|---|
| Conductor Resistance (Max.) | < 82 | Ω/km |
| Resistance Unbalance (Max.) | < 2 | % |
| Insulation Resistance (Min.) | 5000 | MΩ×m |
| Capacitance (Max.) | < 60 | pF/m |
| Capacitance Unbalance (Max.) | 1600 | pF/km |
| Characteristic Impedance at 100 MHz | 100 ± 5 | Ω |
| Nominal Velocity of Propagation | 66 | % |
| Signal Delay (Max.) | < 45 | ns/100 m |
| Test Voltage | 1000 | V |
| Operating Voltage | 125 | V |
STANDARDS
- EIA/TIA-568-C.2
- ISO/IEC 11801 2nd ed.
- IEC 61156-5
- EN 50173-1
- EN 50288-6-1
- RoHS Compliant
ORDERING INFORMATION
| Product Code | Description | Packaging |
|---|---|---|
| ATK6AUUTP-GY | Cat 6A U/UTP Cable | 305 m Box / 500 m Drum |
MARKING
ATEK KABLO - CATEGORY 6A U/UTP - 4P - 23AWG - PVC - 500MHz - IEC 61156-5 - ISO/IEC 11801 - EN 50173 - RoHS - [Batch Number] - [Meter Mark]
NOTES
- Suitable for Ethernet, ISDN, TPDDI, ATM, PoE and PoE+ applications.
- Designed for structured cabling installations.
- Intended for indoor applications.
- Manufactured in accordance with international quality standards.
- Specifications may be updated without prior notice.
